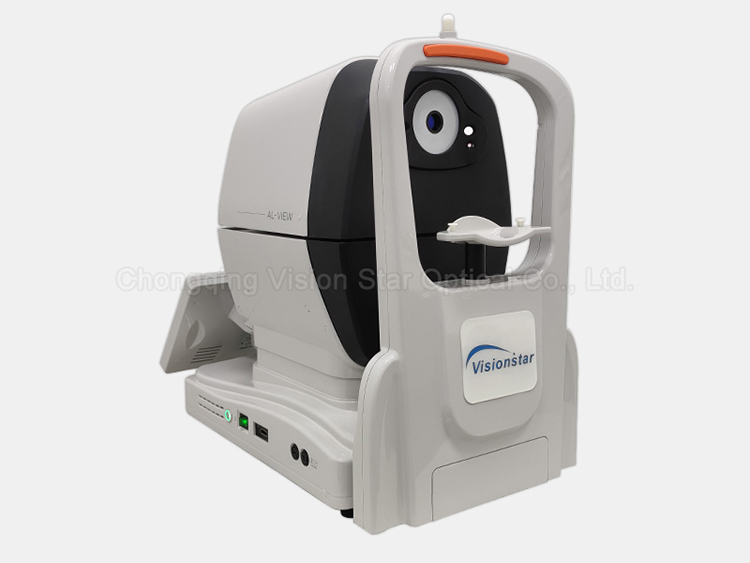

AL-view Optical Biometer
AL-view Optical Biometer
Features:
1. automatic operation without handle, one finger touch get all results automatically
2. compact design with computer build in
3. micron level ensure accurate eye axial length measurement
4. biological progress analysis available
5. built-in thermal printer
Videos:
 |
 |
 |
 |

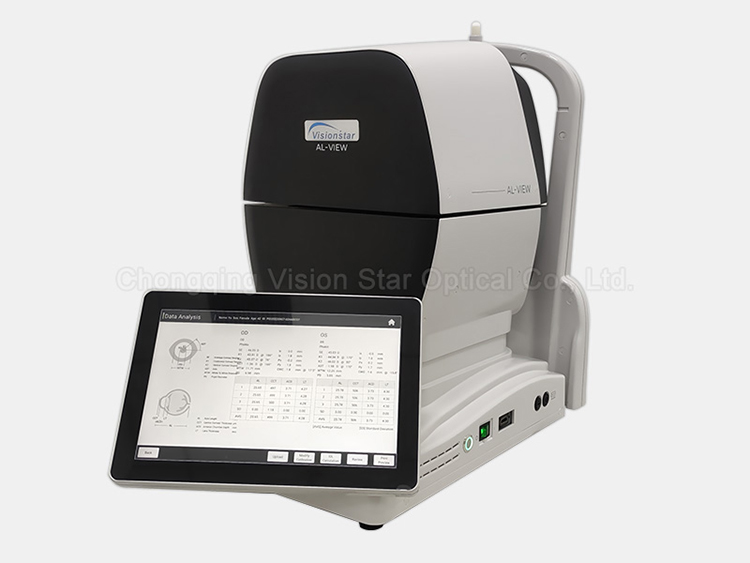

| Adjustable Touch Screen | Advanced Optical System |
 |
 |
| Motorized Chinrest | USB and Internet Interfaces |
Software Interfaces:
Home
Measurement
Examining
Data Analysis
IOL Calculation
| Measuring Range | axial length | 14-38mm |
| Corneal curvature | 5-11mm | |
| Anterior chamber depth | 0.7-8mm | |
| Lens thickness | 1-10mm(lens) | |
| 0.13-2.5mm(intraocular lens) | ||
| Center cornea thickness | 0.2-1.2mm | |
| Cornea white to white | 7-16mm | |
| Pupil diameter | 2-13mm | |
| Curvature range | 180 degree | |
| Accuracy | Axial length | 0.01mm |
| Corneal curvature | 0.01mm | |
| Anterior chamber depth | 0.01mm | |
| Lens thickness | 0.01mm | |
| Center cornea thickness | 0.01mm | |
| White to white | 0.1mm | |
| Pupil diameter | 0.01mm | |
| Axis of sight eccentricity | 0.01mm | |
| Axis angle | 1 degree | |
| Repeatability | Axial length | 0.02mm |
| Corneal curvature | (1σ)+/-30μm | |
| Anterior chamber depth | 0.02mm | |
| Lens thickness | 0.02mm | |
| Center cornea thickness | 0.02mm | |
| White to white | (1σ)+/-0.3μm | |
| Curvature difference | ±9 degree | |
| Calculation formula of intraocular lens | Bink Horst-Ⅱ、Holladay、Hoffer-Q、Haig is、SRK-T、SRKⅡ | |
| interfaces | USB2.0 window 10 | |
| voltage/ frequency | AC 110-240V/50HZ | |
