BIO-1000 Goldmann Type Visual Field Analyzer
BIO-1000 Goldmann Type Visual Field Analyzer
Features:
1. Comprehensive real-time monitoring , heiji-krakau physiological blind spot monitoring, gaze tracking/head position tracking, automatic measurement of pupil diameter, reduce the impact of pupil effect on visual field detection.
2. Personalized design, accurate clinical analysis, accurate and rapid examination strategy.
3. Under international Goldman standard, providing a variety of classic test procedures and report analysis
Video:
 |
 |
 |
 |
| Color Touch Screen | Sensitive Responder |
 |
 |

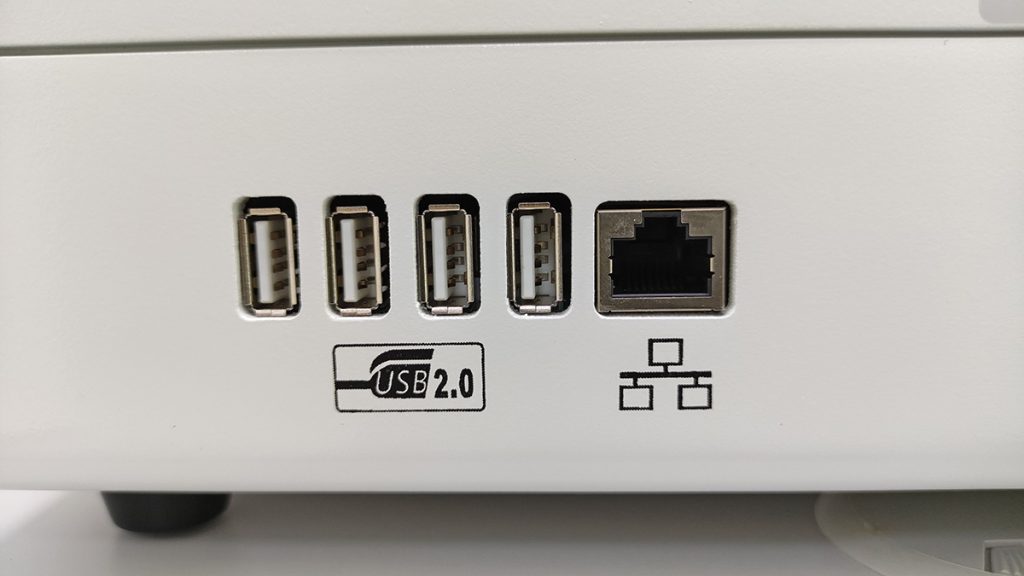

| Motorized Chinrest and Trial Frame for Refractive Lenses | USB and Internet Interfaces |

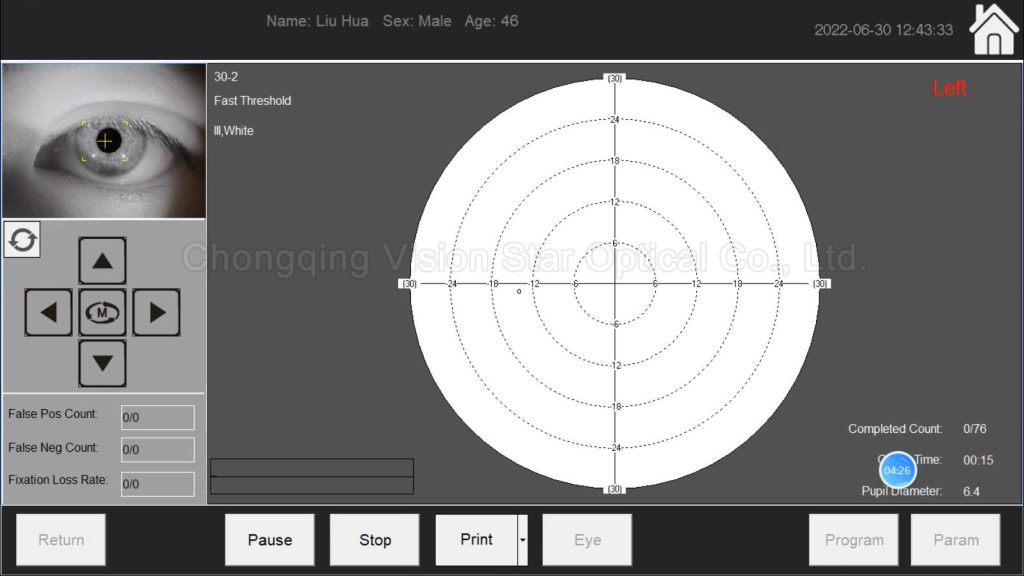

Visual field examination

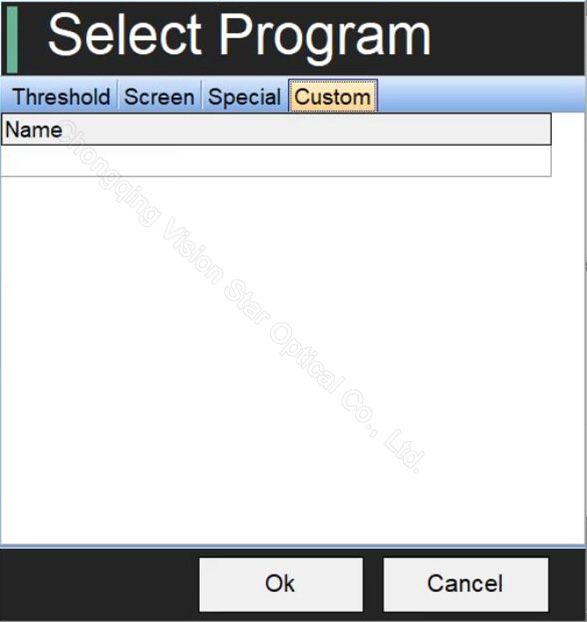

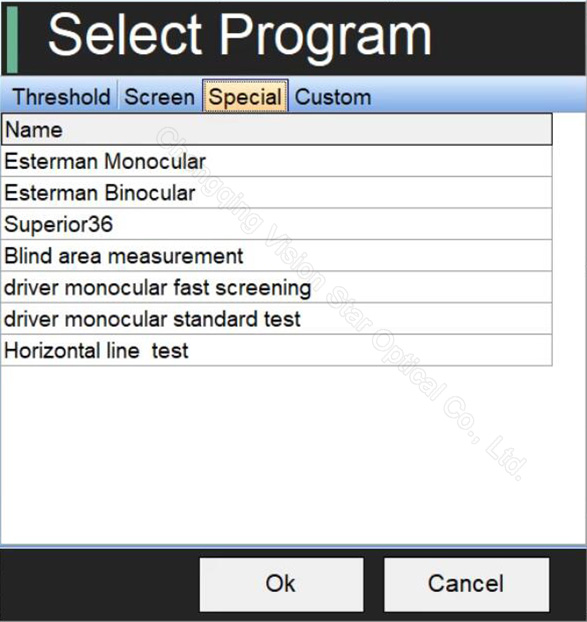

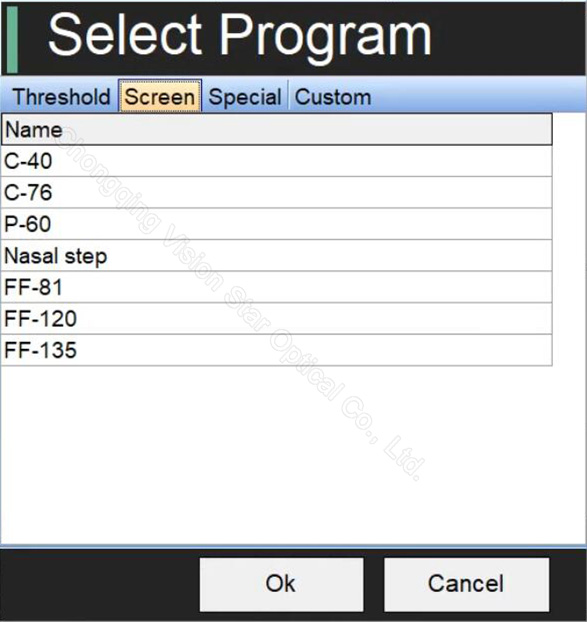

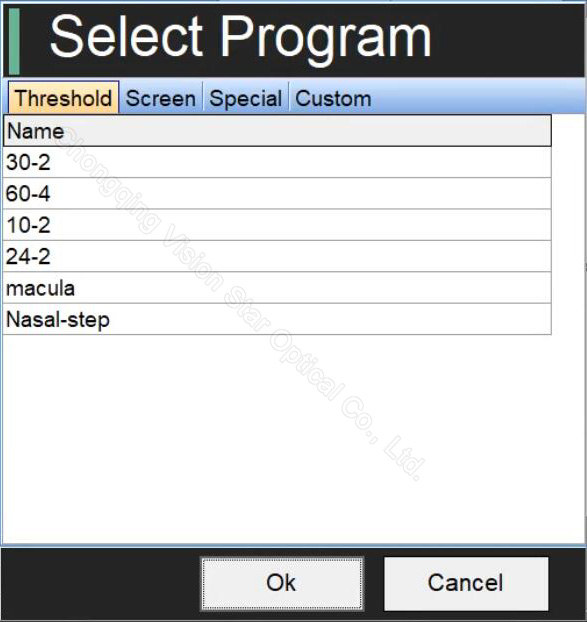

Programs
 |
 |
 |
 |

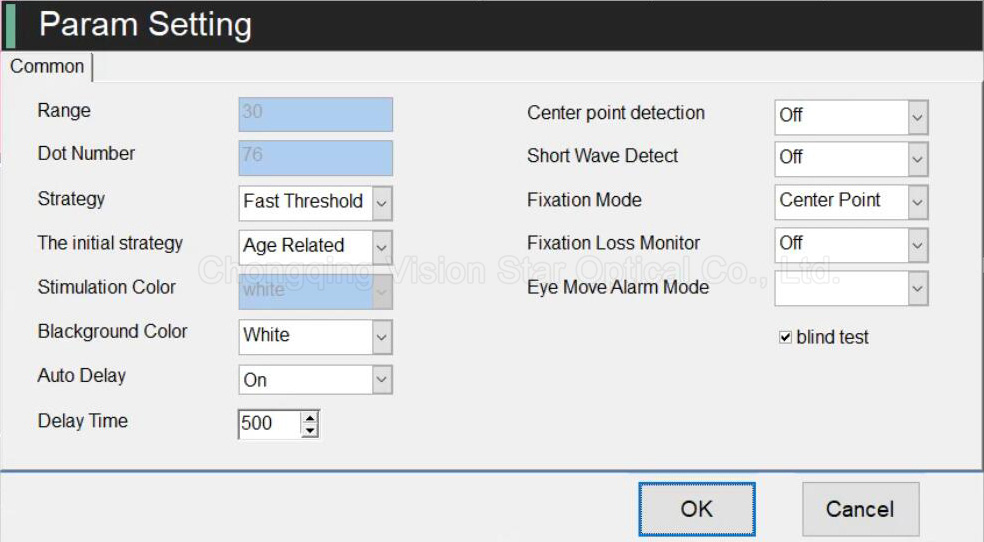

Parameters setting

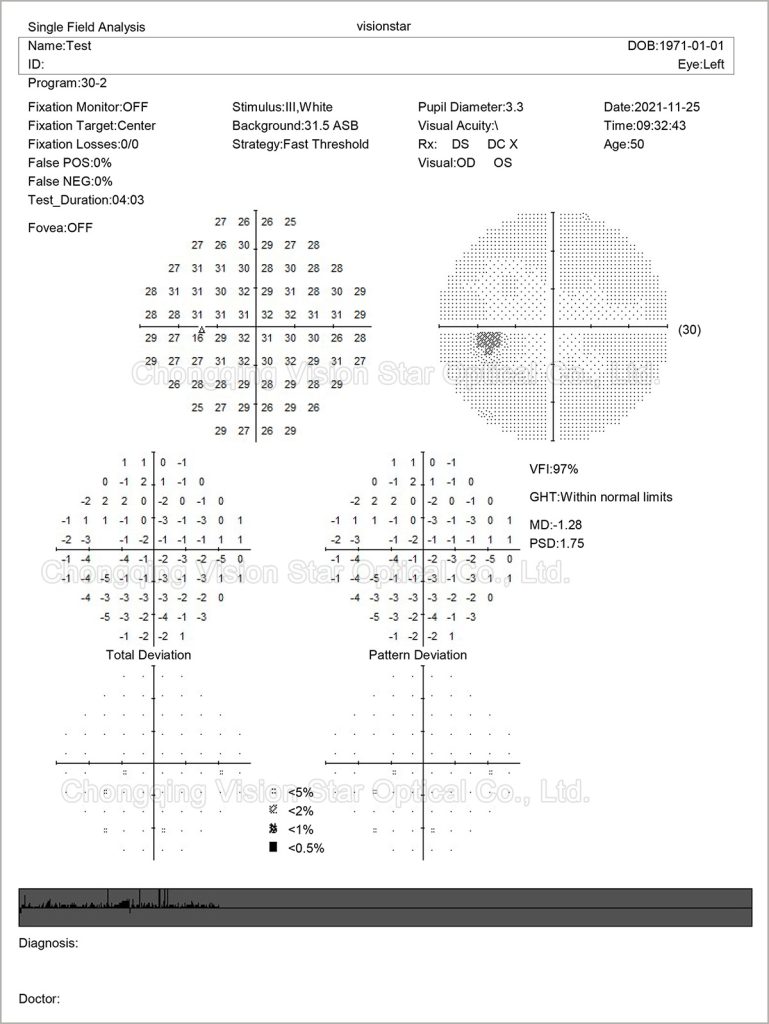

Report
| Technical Data | |
| Inspection range | 90° |
| Inspection distance | 30cm |
| Background light brightness | White 31.5asb |
| Visual target brightness | 1asb—10000asb |
| Visual target size | Goldmann Ⅲ |
| Visual target interval time | 200ms |
| Visual target interval time | Standard or adjustment according to patient reflection |
| Threshold test model | Center 5°-16, center 10°-68, 24-2, 30-2, 30°-60°, nasal step |
| Upper Threshold test model | 30°-40, 30°-76, P-60, 60°-81, 60°-120, 190°-135, nasal side |
| Special detection strategy | Esterman monocular, Esterman binocular, user-customized test, 150° driver monocular fast detection, 150° driver monocular standard detection, upper 36° detection, blind spot detection, 150° horizontal straightness detection |
| Pupil size test | Automatic |
| Fixation monitoring | Blind spot monitoring, eye position eye position deviation alarm, eye deviation curve |
| Environment light detection | Automatic |
| Analysis software | Reliability analysis , single vision report, triple vision report, GPA half vision analysis, GPA glaucoma developing analysis, VFI vision index analysis |
