RetiView-500 Ophthalmic OCT Machine
RetiView-500 Ophthalmic OCT Machine
Video:
Features:
1. Integrated Design: Everything is inside this compact body. No external computer is needed.
2. Computer PC Inside: Data acquisition and processing are accomplished by the internal computer. The data can be transported via USB or external hard drive. Peripheral devices, such as keyboard or printer, can be connected to the computer ports.
3. Easy Installation: No complex connection or setup. Compact body can fit in even small space.
 |
 |
 |
 |
 |
 |

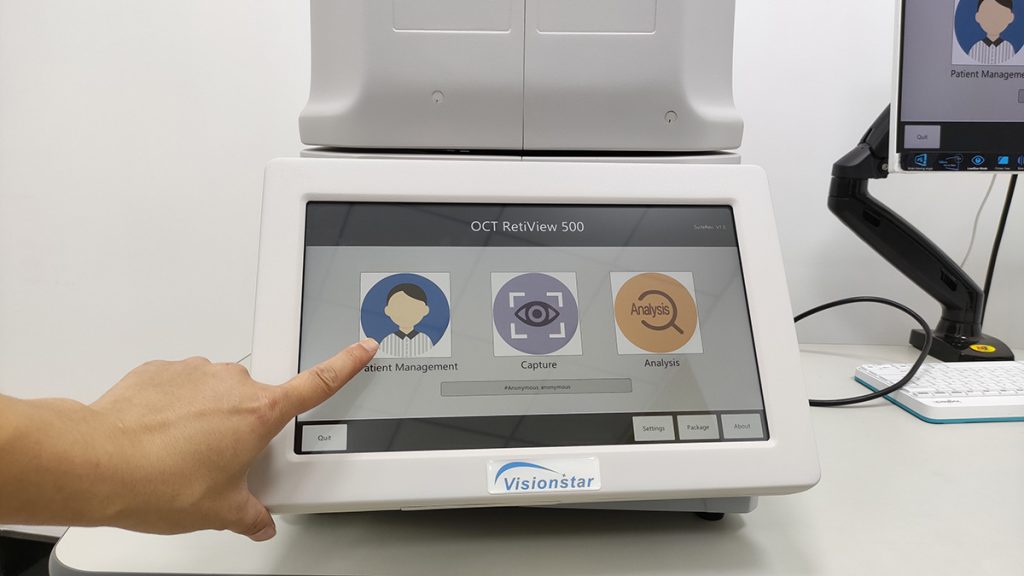

| Tilting Color Touch Screen | Advanced Optical System |
 |
 |

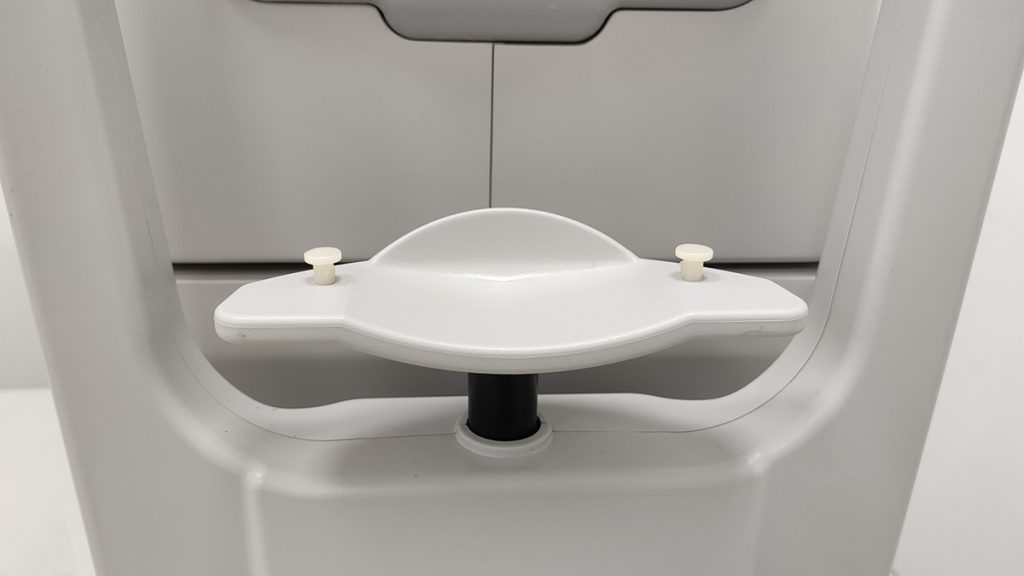

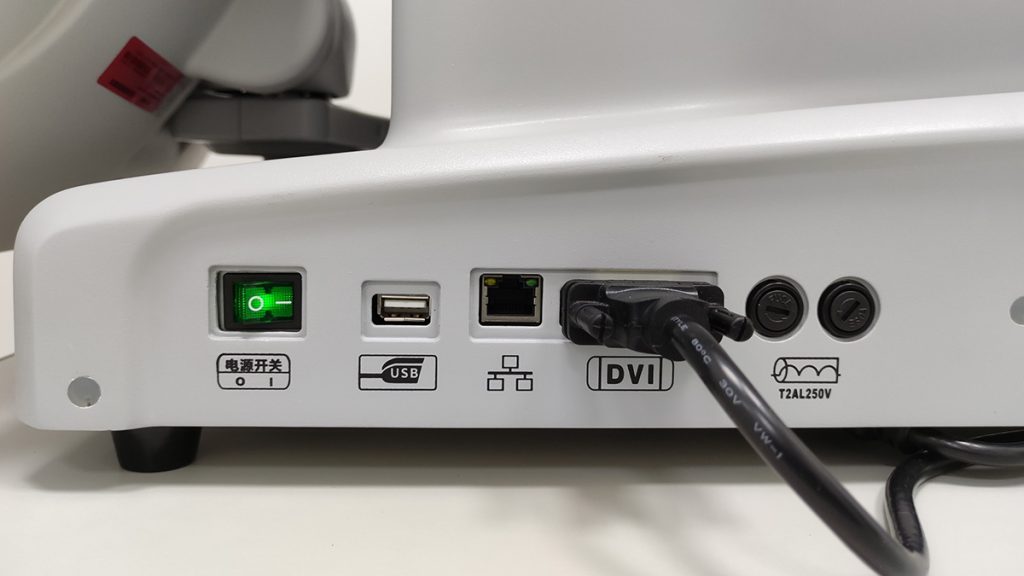

| Motorized Chinrest | USB, Internet, and DVI Interfaces |
Analysis Types
Major Test Area
OCT Exam
Picture Edit
Scan Modes
| Technical Data | |
| Methodology | Spectral domain OCT |
| Axial resolution | ≤ 6 µm (in tissue) |
| Transverse resolution | ≤ 20 µm (in tissue) |
| Scan depth | ≥ 2.5 mm (in air) |
| Scan range | ≥ 6 mm |
| Scan speed | ≥ 24,000 A-scans/sec, up to 36,000 A-scans/sec |
| Scan modes | 30, Raster, Circle |
| Fundus image | OCT en face |
| Focus adjustment | -150 to +150 |
| Pupil diameter | ≥ 3 mm |
| OCT light source | 840 nm SLD |
| Optical power | 750 µW (at cornea) |
| Operation | 13.3’’ touch screen, optional external mouse or keyboard |
| Power supply | 100-240 V, 50/60 Hz |
| Dimensions | 497 mm × 395 mm × 490 mm (L × W × H) |
| Weight | LED dot matrix |
| External fixation | 34 kg (75 lbs) |
