Retiwave-1000 Ophthalmic AB Scan
Retiwave-1000 Ophthalmic AB Scan
Video:
Features:
1. RetiWave 1000 is digital ultrasonic system for ophthalmology. With advanced, intelligent, and digital software, parameters and images can be adjusted conveniently.
2. A-Scan measures data for every part of the eyeball including anterior chamber depth, lens thickness, axial length and so on. It provide accurate data for ophthalmic surgeries, and IOL calculation.
3. B-Scan displays profile images of the eyeball clearly and directly, which allows doctors to accurately analyse and diagnose cataract, vitreousbody disease, ocular trauma, detachment of retina or choroid, macula disease, and intraocular tumor, etc
 |
 |
 |
 |

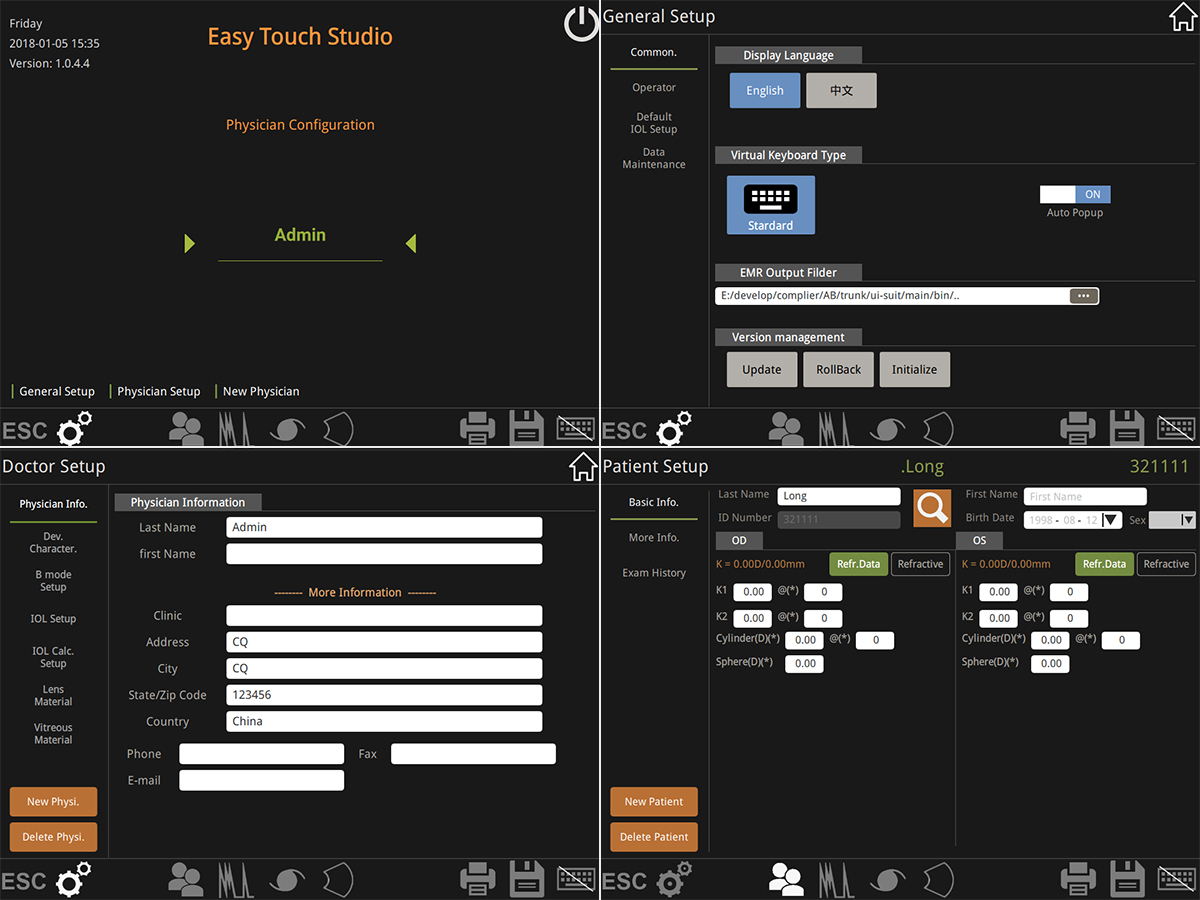

Settings

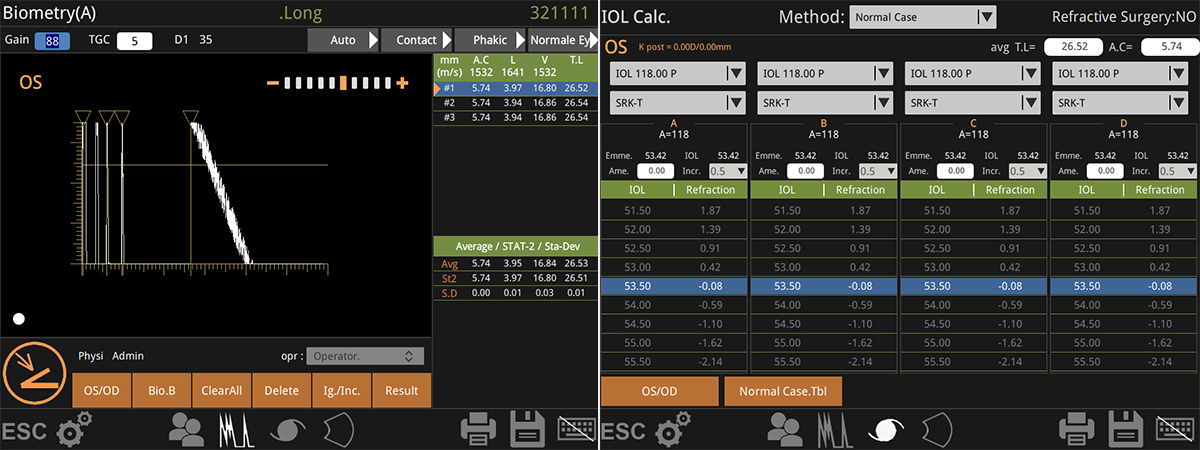

A Scan and IOL Calculation

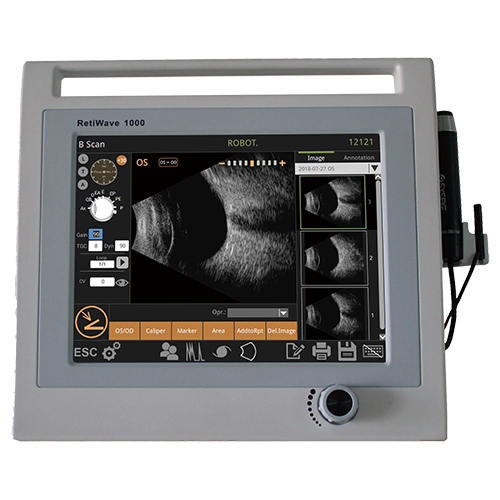

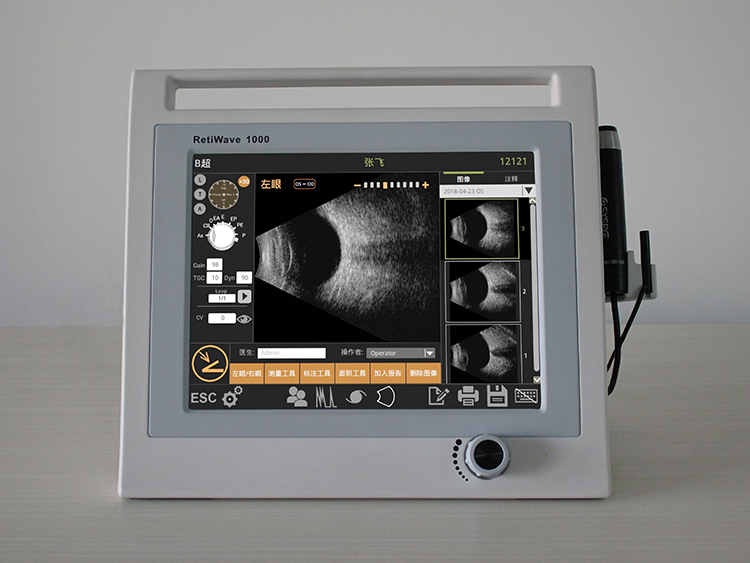

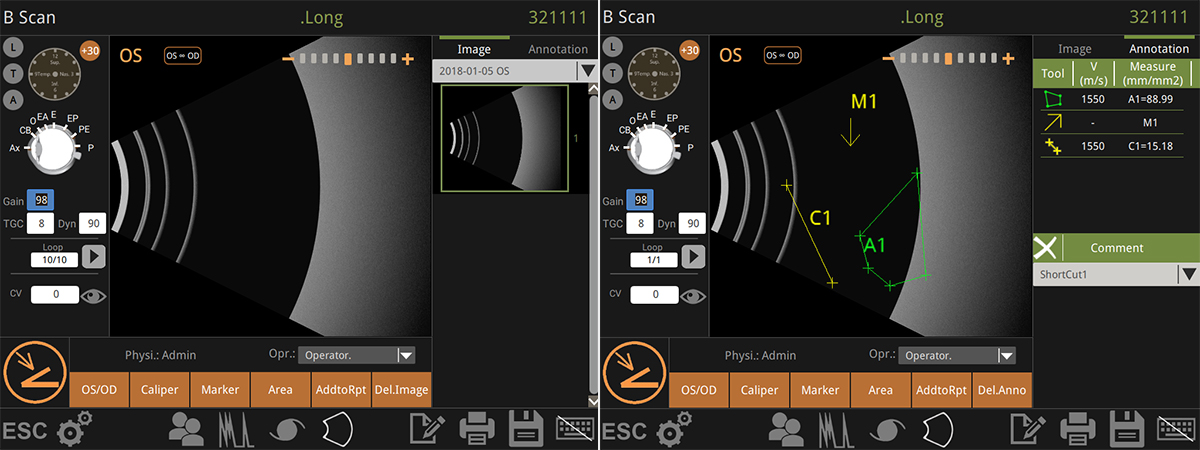

B Scan
| Technical Data | |
| A Probe frequency | 10MHz |
| A Probe Measuring model | Contact |
| A Probe Measuring range | Over 5mm~40mm |
| A Probe Measuring error | ≤0.05mm |
| A Probe Measuring type | Length of optic axis, automatic calculation, result analysis |
| A Probe Image freezing | Image freezing auto, auto+ preservable, manual |
| Intraocular lens formula | SRK-T, SRK II, HOLLADAY,BINKHORST-IIHOFFER-Q, HAIGISI |
| Gain | 20~110dB |
| Time gain adjustment | 0~30dB |
| B Probe Frequency | 10Mhz |
| B Probing Depth | ≥50mm |
| Axial Resolution | ≤ 0.2mm |
| Lateral Resolution | ≤0.3mm |
| Gain Adjustment | 20-110db |
| Time Gain Adjustment | 0-30db |
| Operation Mode | Eyecup, gel, aqueous capsule |
| Post Processing Measuring Tools | Area, Length, Mark and Annotation |
| Reviews | 100 images available |
